Production & Quality Assurance
To the Highest Quality Standards
Quality in every detail – to ensure the high quality of the gearboxes, they are manufactured solely to the highest quality standards. From the cutting of the material to the gear, all components are produced in-house in our ISO 9001:2015 certified facilities. The high level of in-house production guarantees the excellent product quality and short delivery times. Almost all production steps are carried out at the production facility in Sonthofen: turning, milling, gear cutting, external and internal grinding, gear grinding, quality assurance and testing on the test bench.
State-of-the Art Machine Technology Paired with Absolute Diligence
A state-of-the-art machine park in which investments are regularly made, absolute diligence in the assembly and the use of the latest quality assurance techniques guarantee that the custom gearboxes and drivetrain elements are always of the highest quality. RSGetriebe attaches great importance to training our specialists in-house and continuously providing them with further training measures. This includes cooperation with renowned institutes and intensive in-house sharing of experience. This ensures that the highest standards are maintained for the ever-increasing demands for gearbox solutions, even in the future.
Quality Control:
- Gear testing with CNC gear testing machines
- Gear roll testing
- 3D dimension testing in the CNC measuring centre
- ZZeiss coordinate measuring machine with intergrated gearing measuring software and temperature compensation
- Surface roughness and contour measurement
Hardness Tests:
- HRC, HV also possible on gears and boreholes
- HBW
Records:
- Complete first sample test report, including material certificate, hardness profile, gearing
- Material certificate
- Hardness protocols, Standard
- Hardness protocols with hardness profile and analysis in acc. with EN 10204/3.1 or 3.2
- Recording of relevant dimensions
- Inspection equipment monitoring is done externally by an accredited calibration laboratory in acc. with ISO / IEC 17025

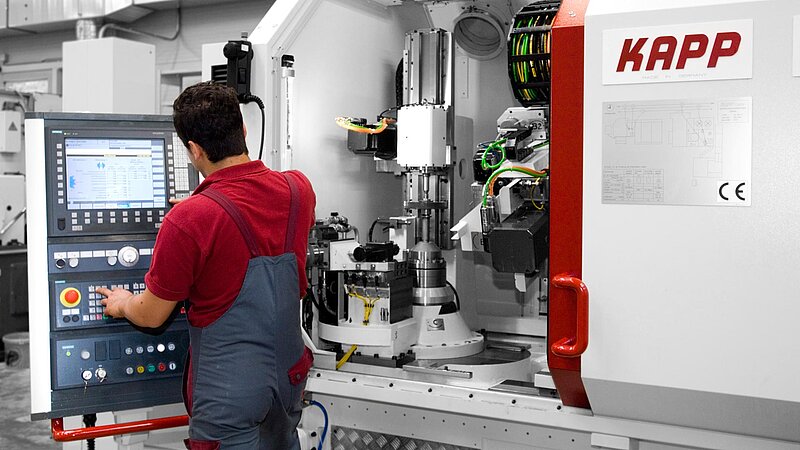

Generative grinding to the highest quality standards

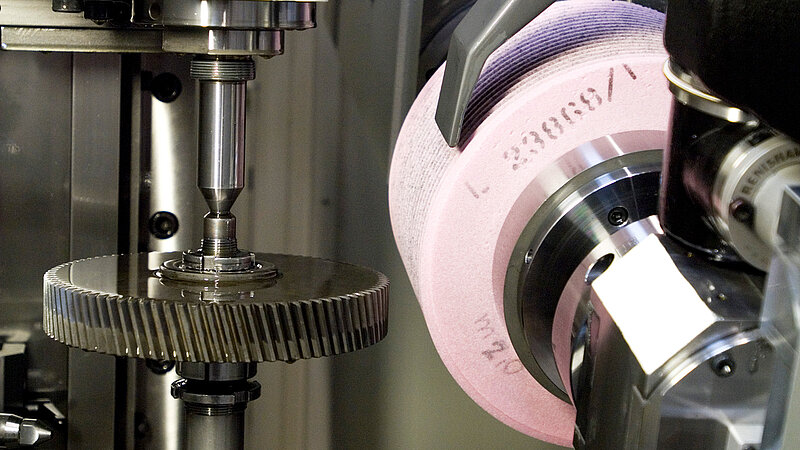

Generative and profile grinding

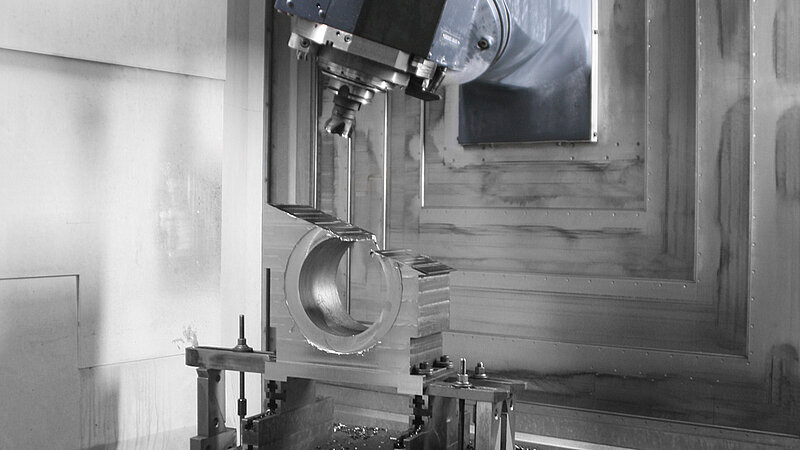

5-axis machining

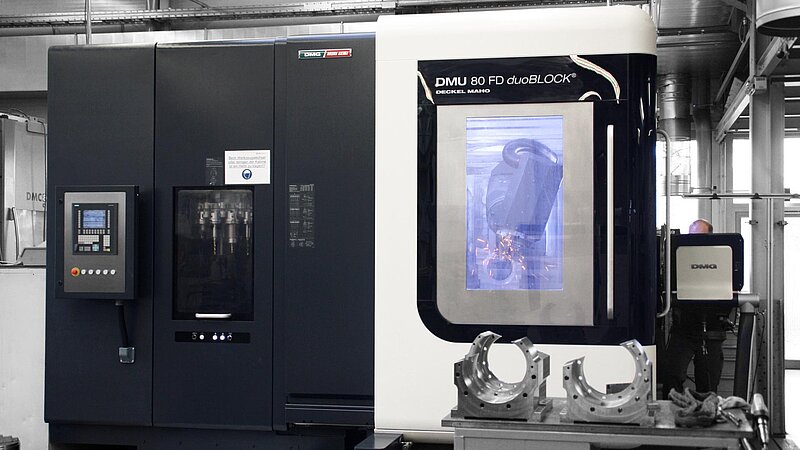

Milling – horizontal machining centre

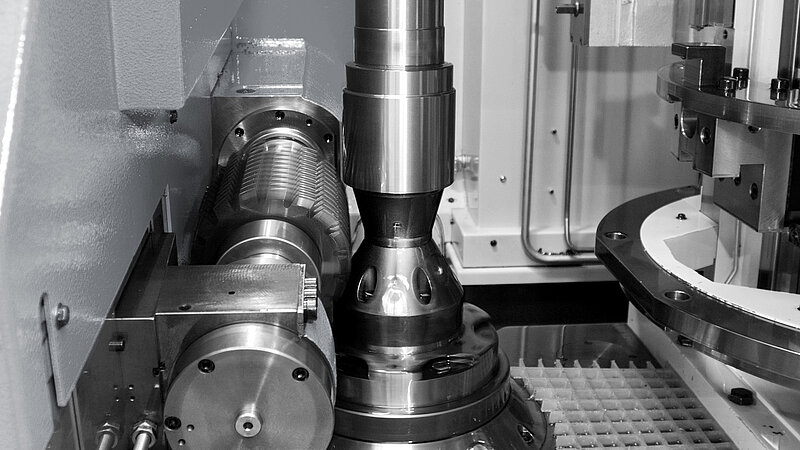

Precision hobbing
Technical Data
| Reference Profile | Method | Modul | Gear tooth quality | Diameter, max. | Gear tooth length, max. |
| DIN 3972 / 5480 | Hobbing, straight and helical external tooth system | 1.0 - 16.0 | Q6 | Ø 800 mm | 1,000 mm |
| DIN 3972 / 5480 | Gear shaping, straight external tooth system | 0.8 - 12.0 | Q6 | Ø 800 mm | 250 mm |
| DIN 3972 / 5480 | Generative and profile grinding, straight and helical external tooth system | 0.8 - 15.0 | Q4 | Ø 800 mm | 400 mm |
| DIN 3972 / 5480 | Gear shaping, straight internal tooth system | 0.8 - 12.0 | Q6 | Ø 800 mm | 250 mm |

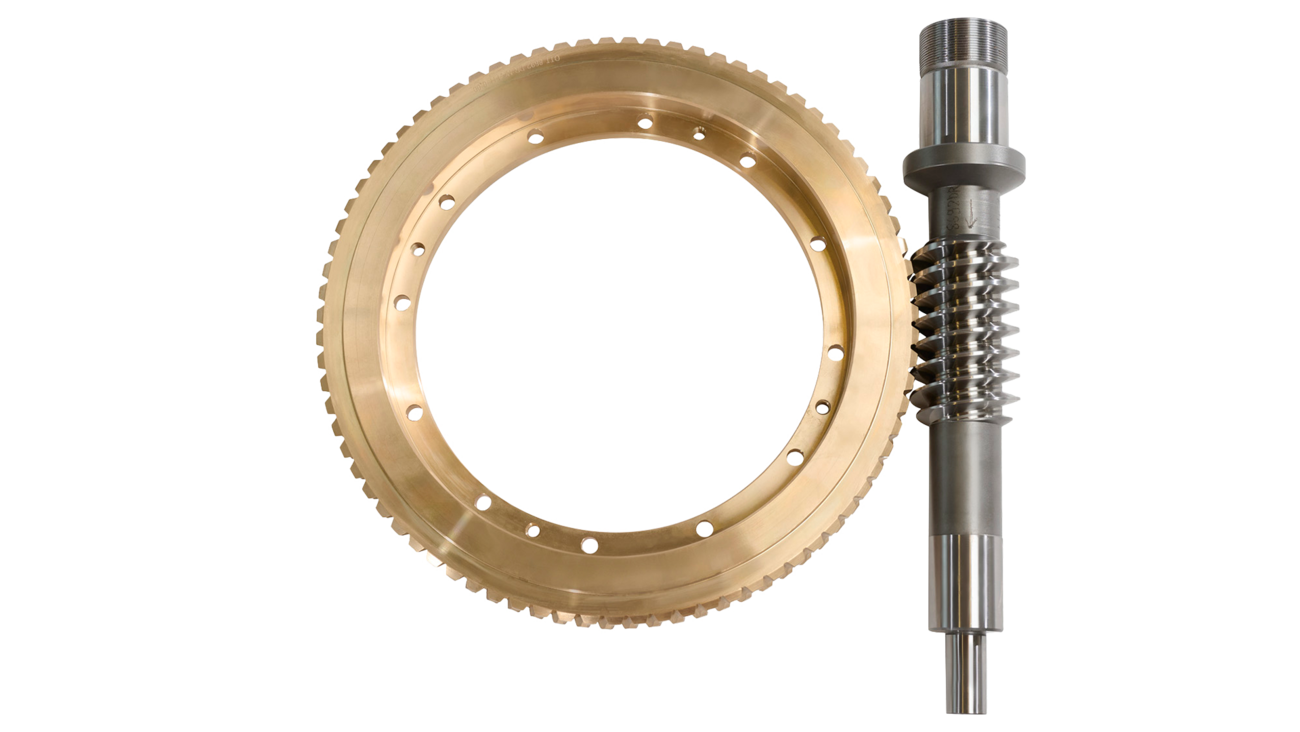

| DIN 5472 | Bevel and worm gears |
| Turning | max. Ø | 650 mm | |
| max. length | 1,500 mm | ||
| Milling | max. X | 2.000 mm | |
| max. Y | 1,600mm | ||
| max. Z | 1,500 mm | ||
| Gear cutting and broaching | Modul 1.0 to 12.0 | max. Ø | 800 mm |
| max. length | 1,000 mm | ||
| Modul 1.0 to 16.0 | max. Ø | 800 mm | |
| max. length | 1,000 mm | ||
| Grinding (external and internal) | max. Ø | 600 mm | |
| max. length | 1,500 mm | ||
| centre height | 300 mm | ||
| Gear tooth grinding | Modul 0.8 to 15.0 | max. Ø | 800 mm |
| max. length | 1,055 mm | ||
| Face grinding | X grinding width | 600 mm | |
| Y grinding width | 1,000 mm | ||
| Z grinding width | 600 mm | ||
| Keywaying | width | 70 mm |
