Control Gears



In many industries, both high speeds of rotation and high torques are needed. To achieve both, RSGetriebe offers custom control gearboxes. The main areas of use of the gearboxes – with two or more speeds – are, among others, machine tool drives, winder drives, rolling mills or test benches.

Depending on the application, shifting of the 2 to 75 speeds takes place manually, hydraulically, pneumatically or electromechanically. In order to still be able to operate economically, gear shifts can also be integrated into the standard housings from RSGetriebe’s product portfolio. The result is a compact gearbox that combines reduction with high speeds of rotation.

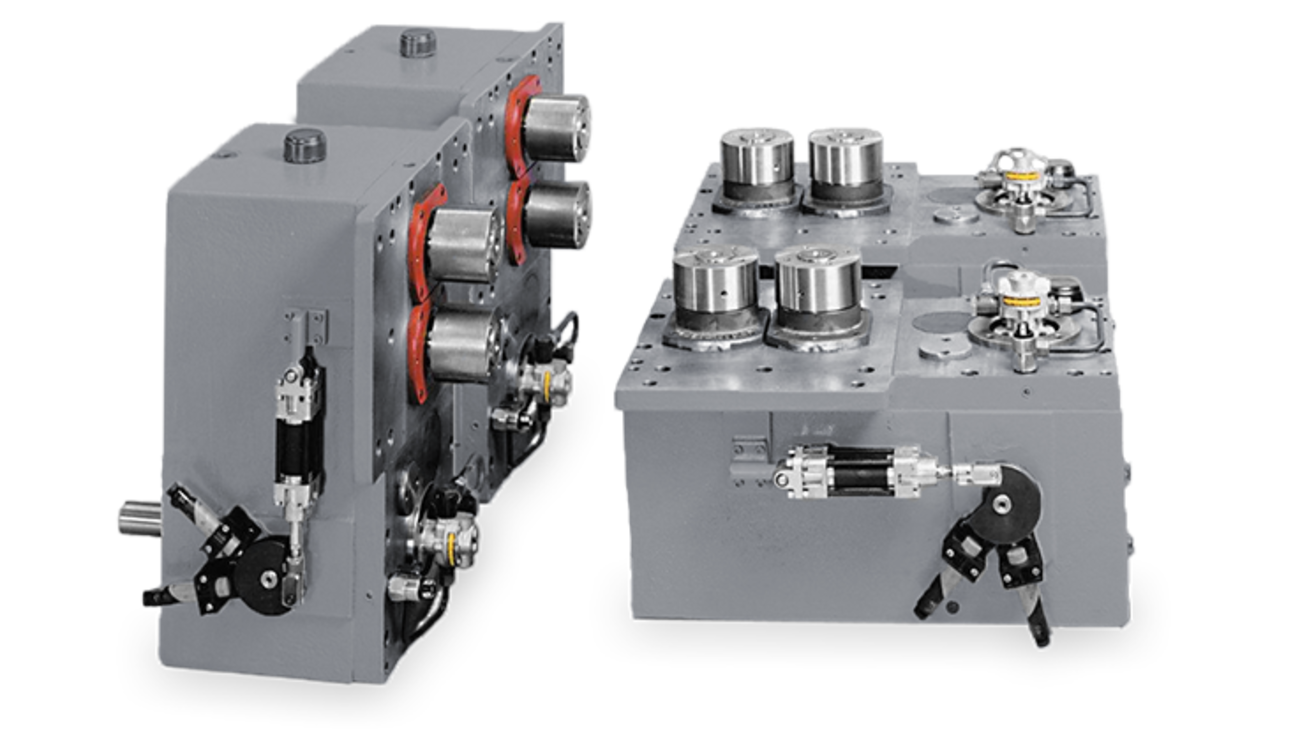

2-speed control gearbox for wire rolling mill

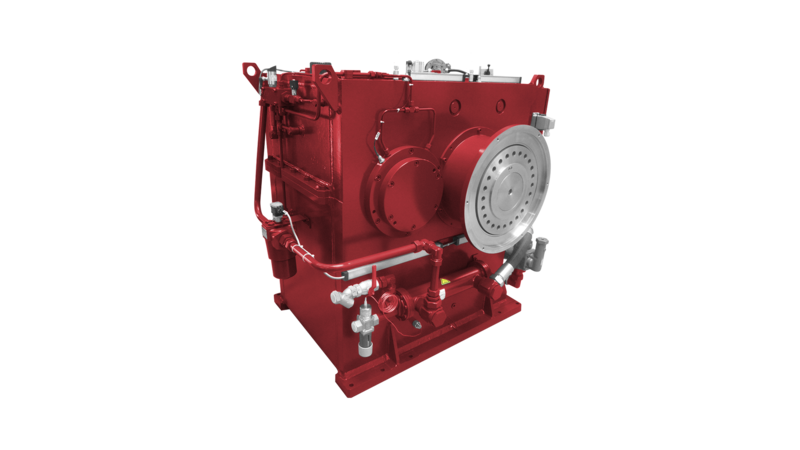

2-speed control spur gearbox

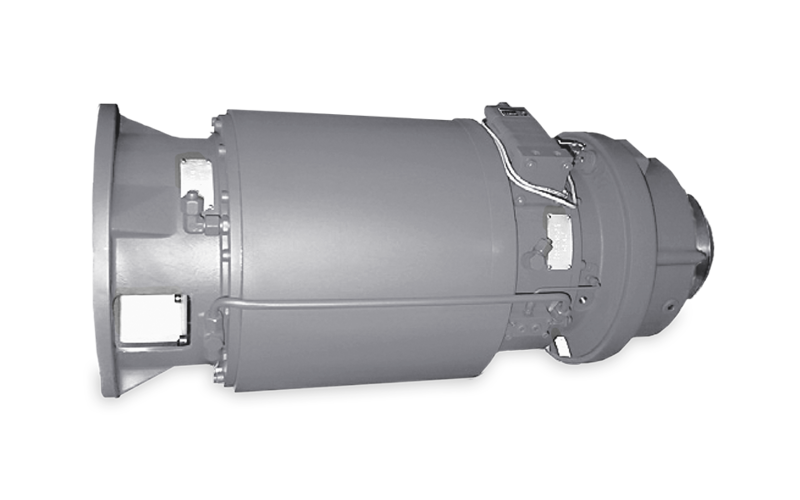

2-speed control planetary gearbox

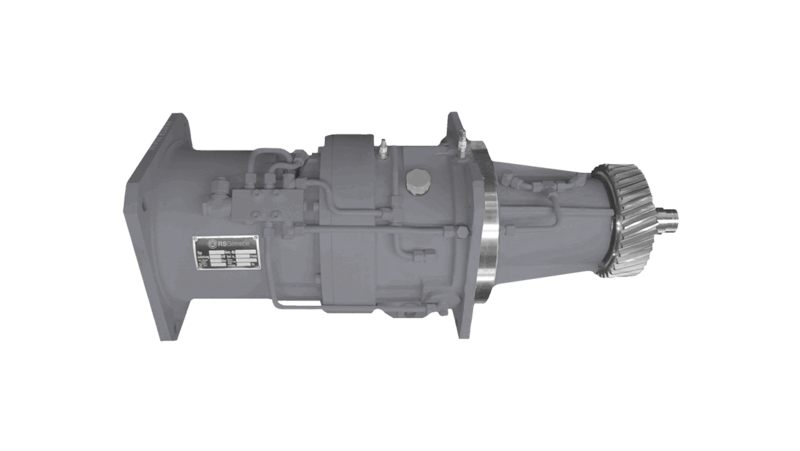

2-speed control planetary gearbox

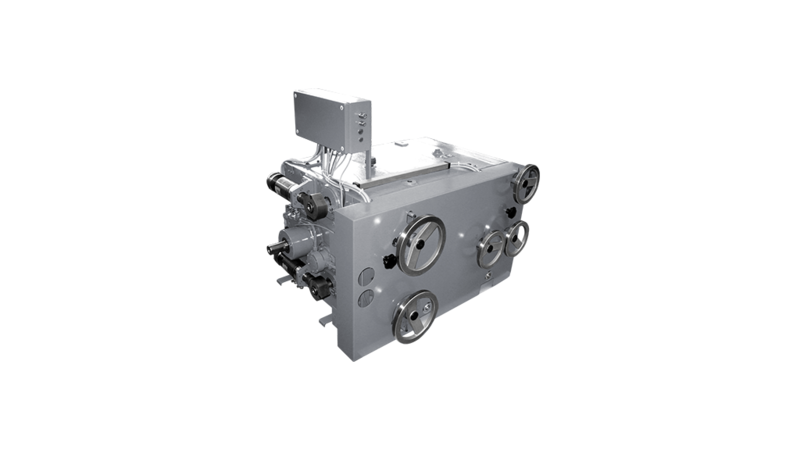

75-speed control gearbox for wire manufacturing

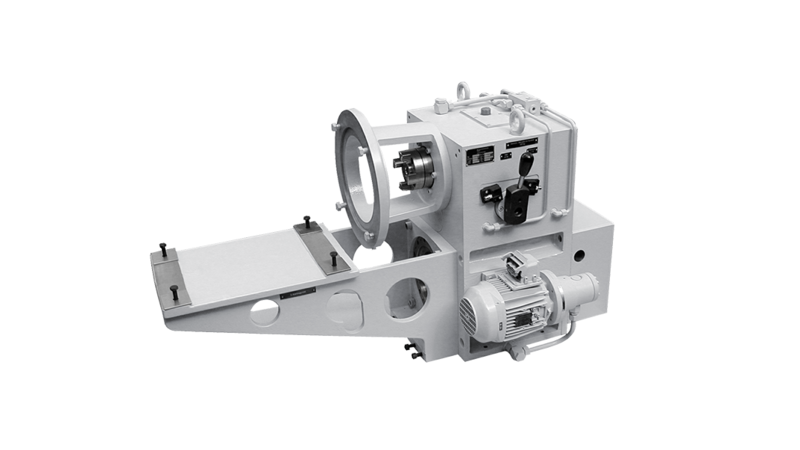

Custom control gearbox

A Variety of Individual Equipment Versions

Control gearboxes made by RSGetriebe can be equipped with the following optional features:

  • Direction of rotation reversal
  • Oil and water cooling
  • Lubricant and temperature monitoring
  • Clutch, motor flange and drive motor
  • Shaft end: smooth, profile DIN 5480, keyway, complete with connecting flange

Technische Daten

Power

P

kW

Up to 7,400
Speed

n2

rpm

Up to 25,000
Torque

T2

Nm

Up to 250,000
Gear speeds  1 to 75
ShiftingManual, hydraulic, pneumatic, electro-mechanic
HousingSteel, cast iron
LubricationGrease lubrication, oil splash lubrication, oil circulation lubrication with pump or separate oil supply unit
CoolingOil/water cooler, internal and external, oil/air cooler

Industry Solutions

For Complex and Customised Requirements

RSGetriebe has been an established partner to a wide range of industries for many decades. Every field of industry has its own requirements and legitimacies – even in the drive technology area. The RSGetriebe team therefore uses its decades-long know-how to develop individual solutions for every industry and thus supports the success of your products.
