Flat Gearboxes
Customized Economic Solution
Flat gearboxes from RSGetriebe are tried and tested solutions in many different branches of industry. They are used, for example, in mixing and stirring technology, in the steel industry and in the materials handling industry.
Thanks to the standardized modular system, the flat gearboxes can be individually and economically tailored to your plant. The gearboxes are available in eleven sizes and cover a range of up to 200,000 Nm. The gear ratio is implemented individually based on the customer’s requirements.
The flat gearboxes are characterized by a high power density and compact design. The gearboxes are standardly available in Z or U form. They can, however, be equipped with a bevel gear stage, if wanted.

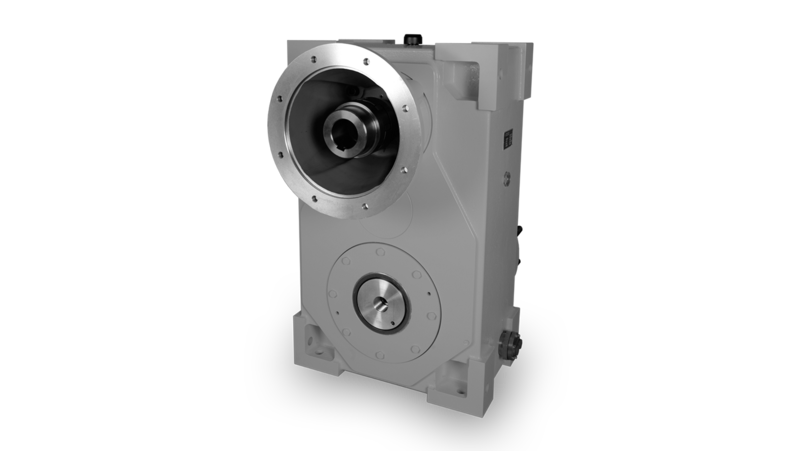

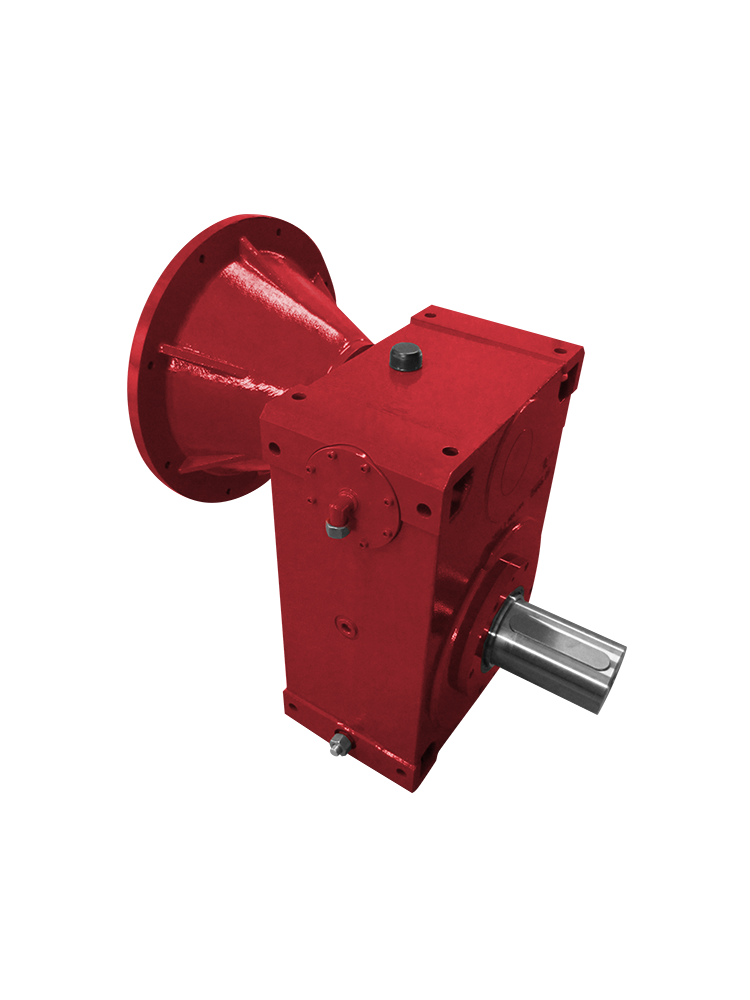

Flat gearbox FEL

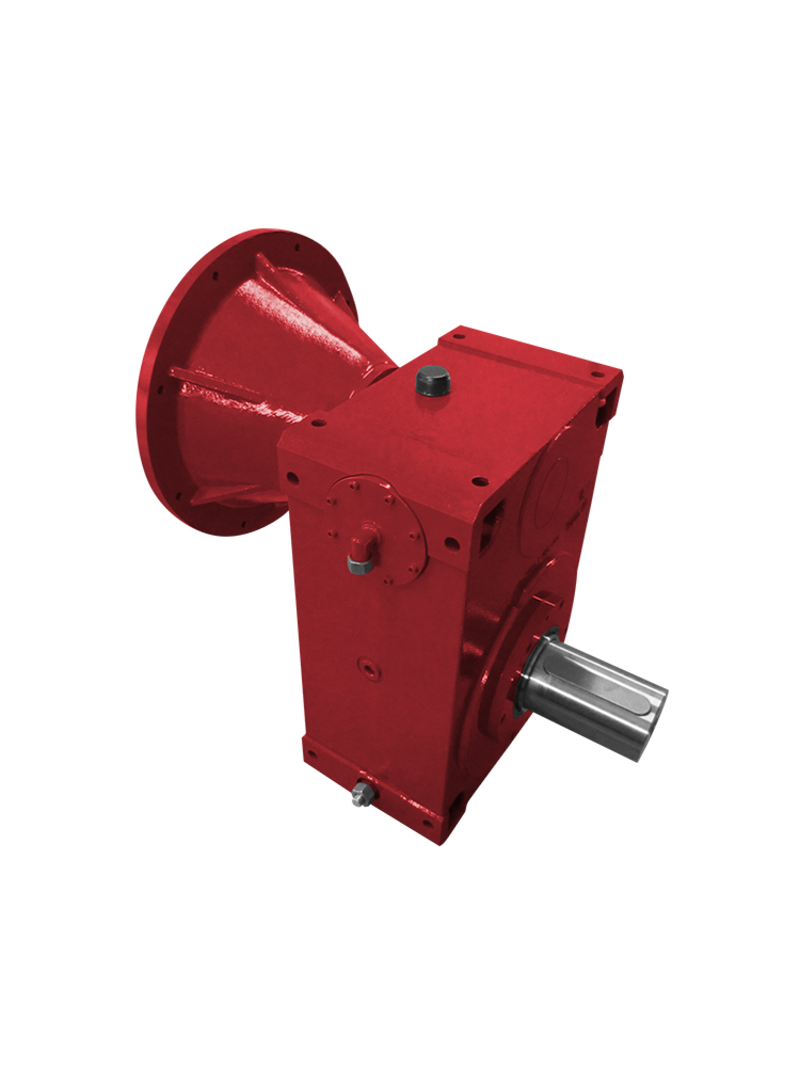

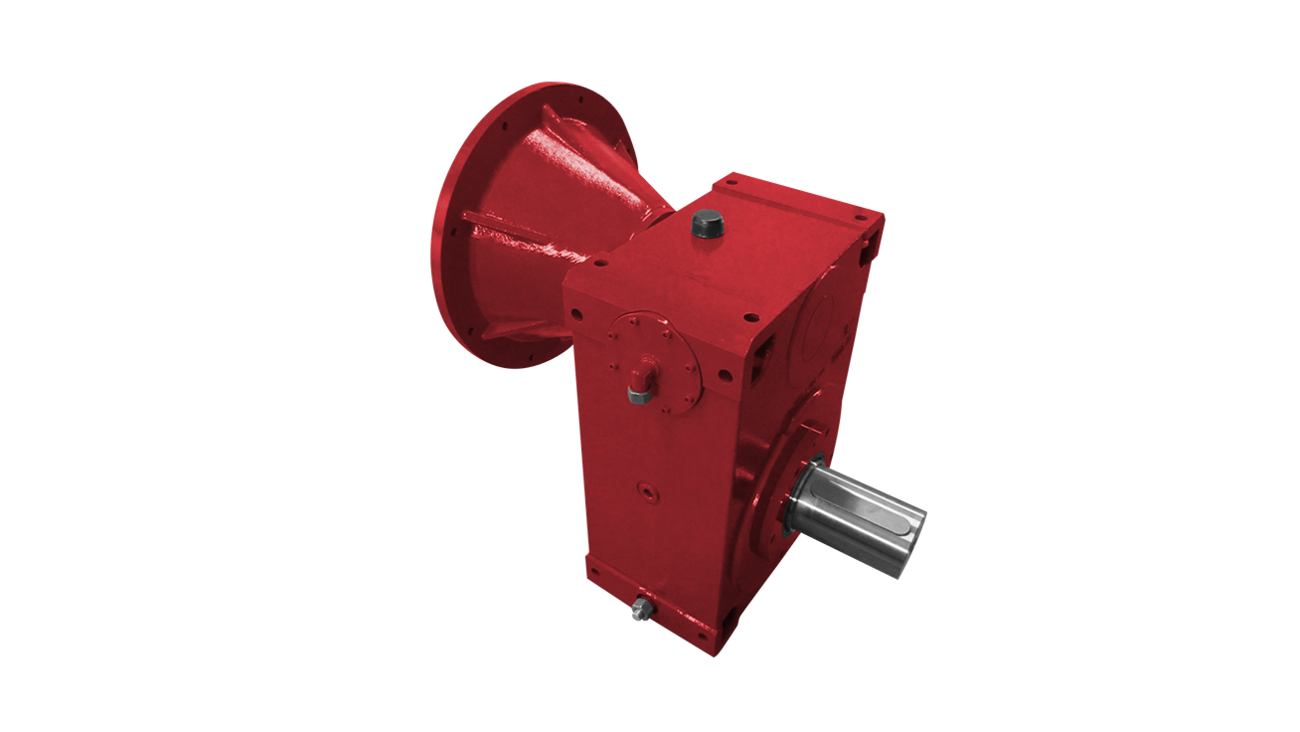

Flat gearbox
The gearboxes can be optionally equipped with motor flange, coupling and oil/water cooler.
The Following Options are Also Available:
- Reinforced bearings for the highest radial and axial load capacity
- Lubricant and temperature monitoring
- Drive motors
- Shaft end: smooth, profile DIN 5480, keyway, complete with connecting flange
Technical Data
Precise, modular housings available in eleven sizes cover a complete range of models.
• Centre distances from 125 to 630 mm
• Models with up to 3 speeds
• Gear ratios from 5:1 to 100:1
• Maximum driving torques up to 200,000 Nm
• Z or U form
• Eleven standard sizes, custom sizes available on request
• Cooling, lubrication and lubricant monitoring according to the customer's wishes
• Inputs and outputs in accordance with the customer's specifications
| Power | P | kW | 8 to 510 |
| Ratio | i |
| 5 to 100 (1 to 3-speed models) |
| Speed | n1max | rpm | Up to 3,000 |
| Torque | T2max | Nm | Up to 200,000 |
| Centre distance | mm | 125 to 630 | |
| Form | Z or U |
| Housing | Cast iron |
| Lubrication | Oil splash lubrication, oil circulation lubrication with pump or separate oil supply unit. |
| Cooling | Oil/water cooler, internal and external, oil-air cooler |
The inputs and outputs are implemented in accordance with the customer's specifications.
