Heavy-duty Gearboxes
Designed for the Highest Torques

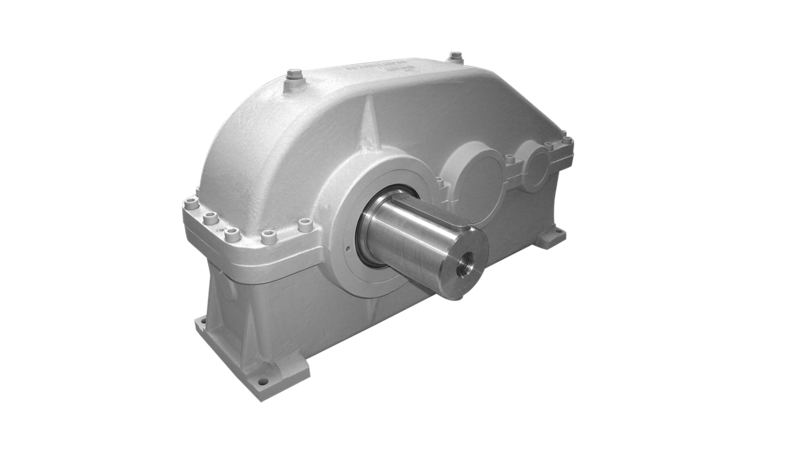

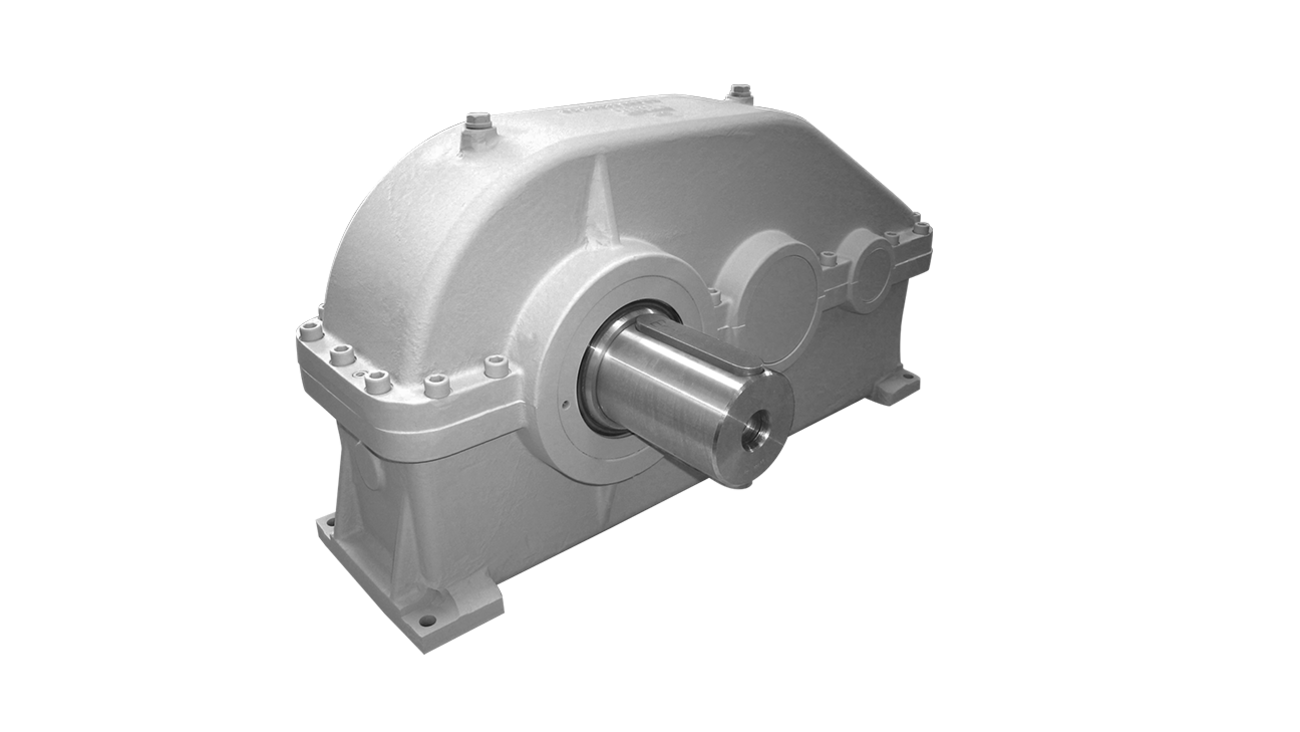

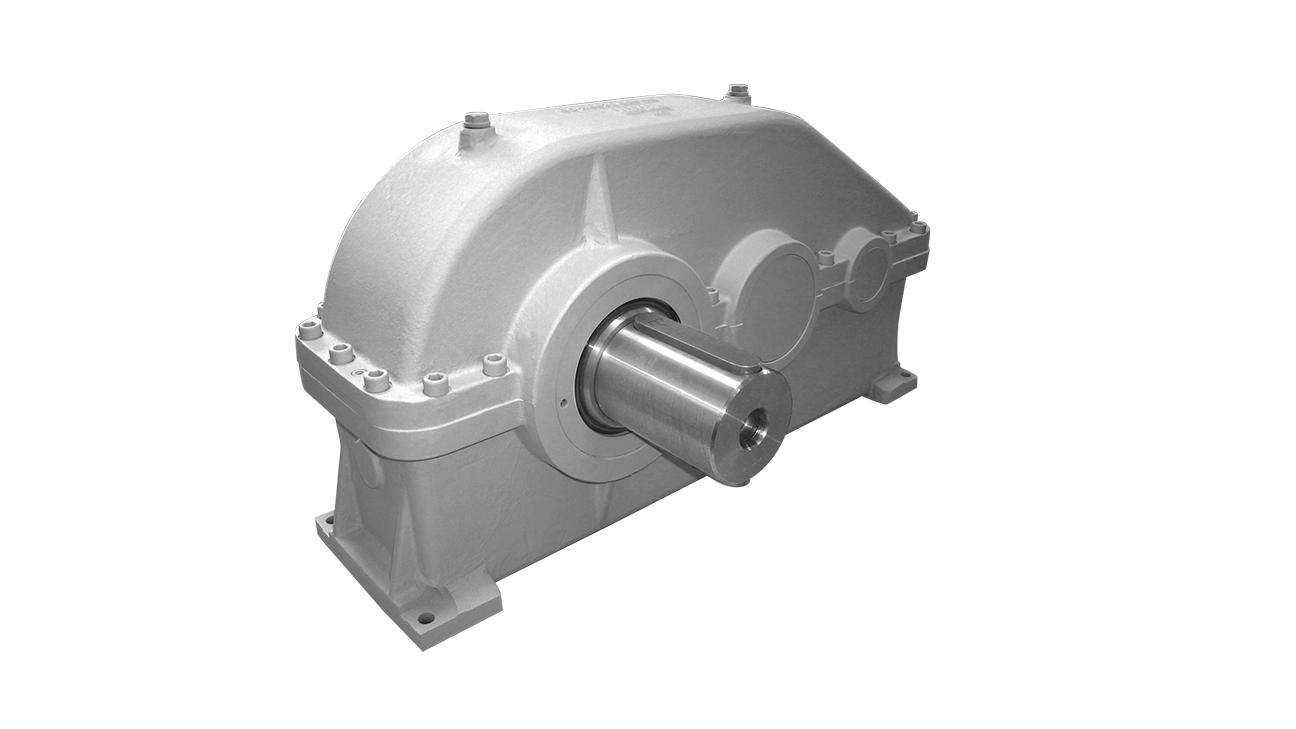

Heavy-duty gearbox

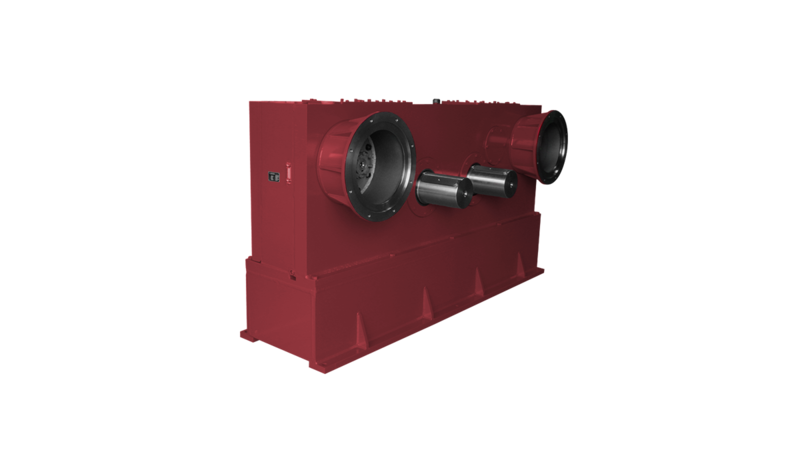

Heavy-duty gearbox with two drive shafts
Multi-speed spur or helical bevel gearboxes – also referred to as heavy-duty gearboxes – are often used in the heavy industry to transmit very high torques. RSGetriebe provides you with heavy-duty gearboxes that are adapted to the respective application and can be equipped with a shifting stage, if required. The experts at RSGetriebe customize the gear geometry and the lubrication system to the respective application to guarantee optimum service life and operational reliability.
The gearboxes are provided with up to five gear ratio steps, with which torques of up to 250,000 Nm are transmitted. You can specify an output speed of less than one revolution per minute.
Heavy-duty gearboxes are used in drives for large mixers, bucket wheels, cranes and cable winches. They are designed for highest performance under extreme conditions.
Heavy-duty gearboxes made by RSGetriebe are available with the following performance data:
| Ratio | i | Up to approx. 3,000 | |
| Speed | n2 min | rpm | 0.5 |
| Torque | T2 max | Nm | Up to 250,000 |
| Housing | Steel |
| Lubrication | Oil splash lubrication, oil circulation lubrication with pump or separate oil supply unit |
| Cooling | Oil/water cooler, internal and external, oil/air cooler |
The inputs and outputs are implemented in accordance with the customer's specifications.
