Rotary Table Drives

Precise Positioning

Machine tool builders achieve exact and reliable positioning of their rotary tables with the rotary table drives of the ES series. They are designed for a power range of 60-140 kW and cover faceplate diameters from 3 m - 12 m.

The rotary table drives consist of a bevel planetary gearbox. Master/Slave-type twin drives can be selected for backlash-free positioning or as milling drives. Alternatively, single drives can be used for continuous turning operation.

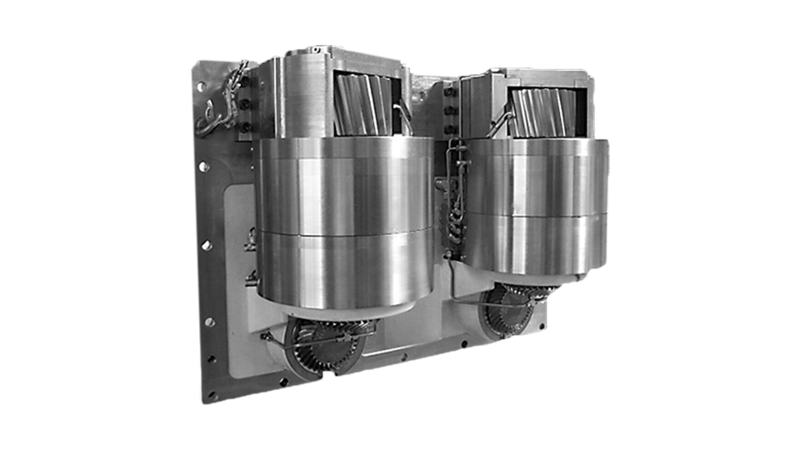

Right-angle control planetary gearbox used as a rotary table drive

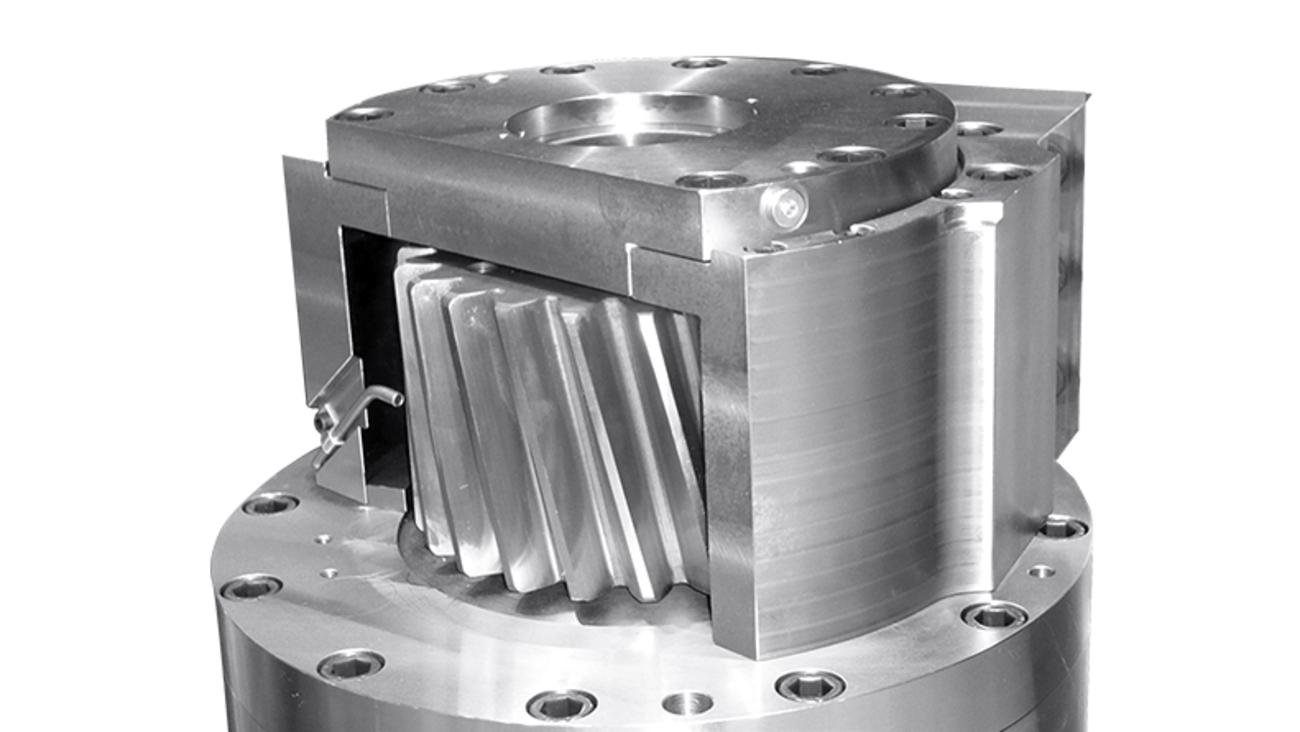

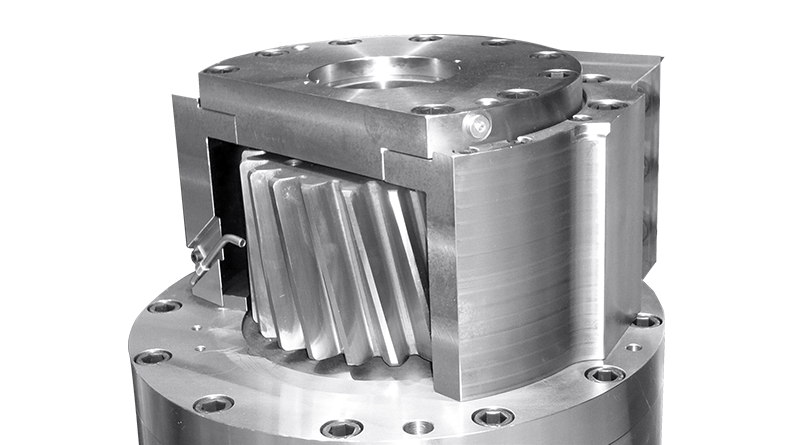

Rotary table drive ES

Technical Data

The rotary table drives made by RSGetriebe are available with the following performance data:

Power	P	kW	60-140
Ratio	i		Bevel gear stage, planetary stage and faceplate according to the customer’s requirements
Speed	n_{2 max}	rpm	Up to 3,250
Torque	T_{2 max}	Nm	Up to 14,000
