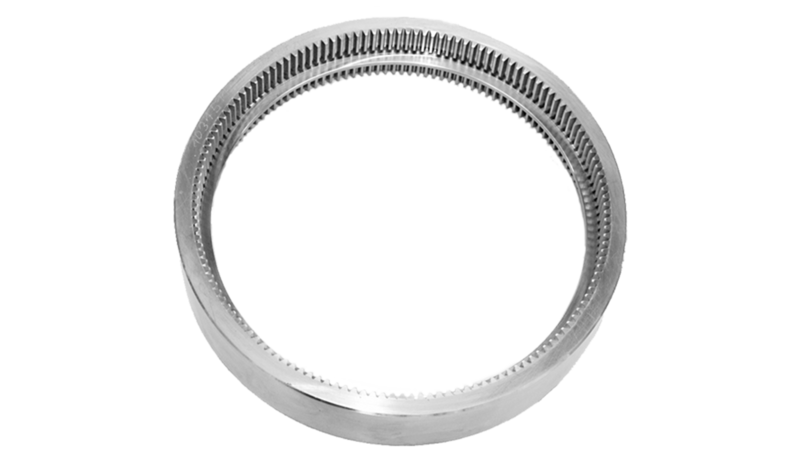

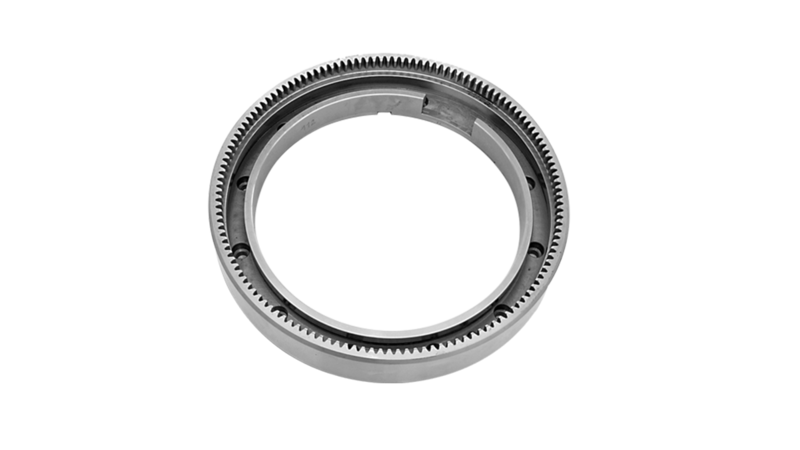

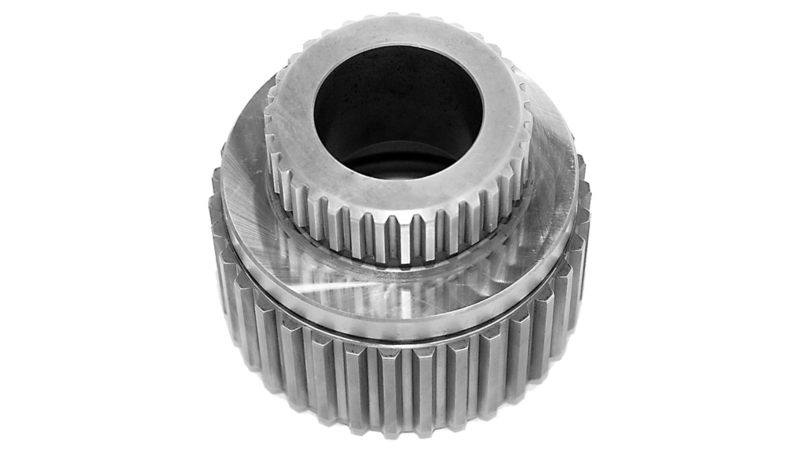

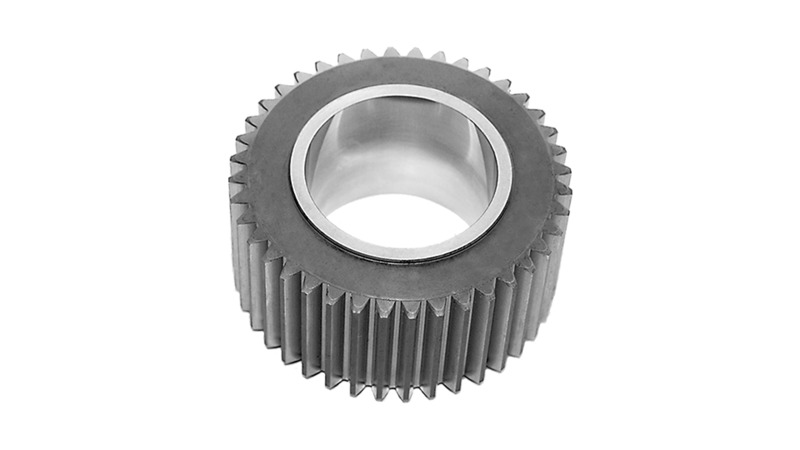

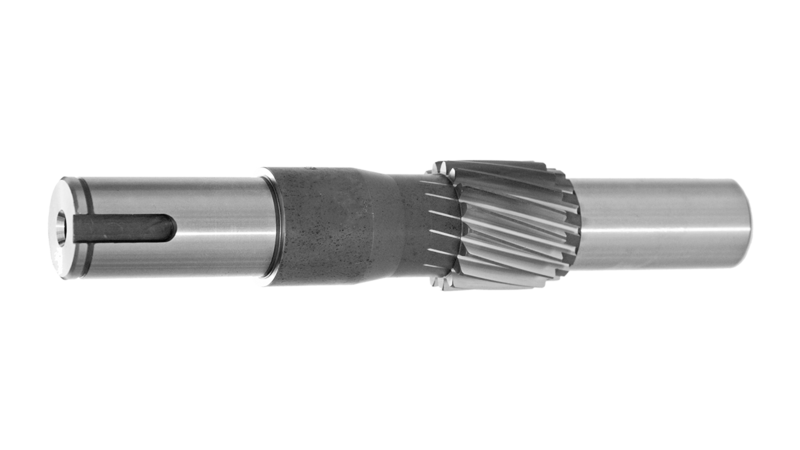

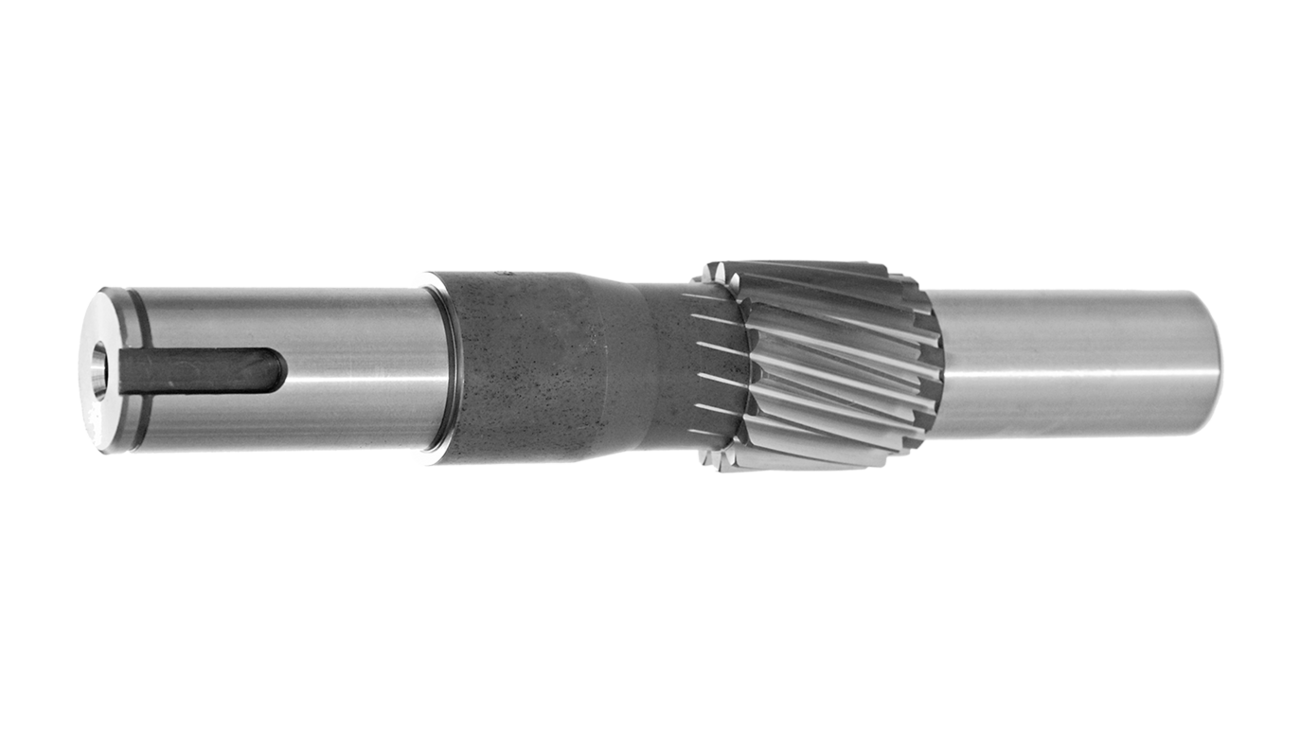

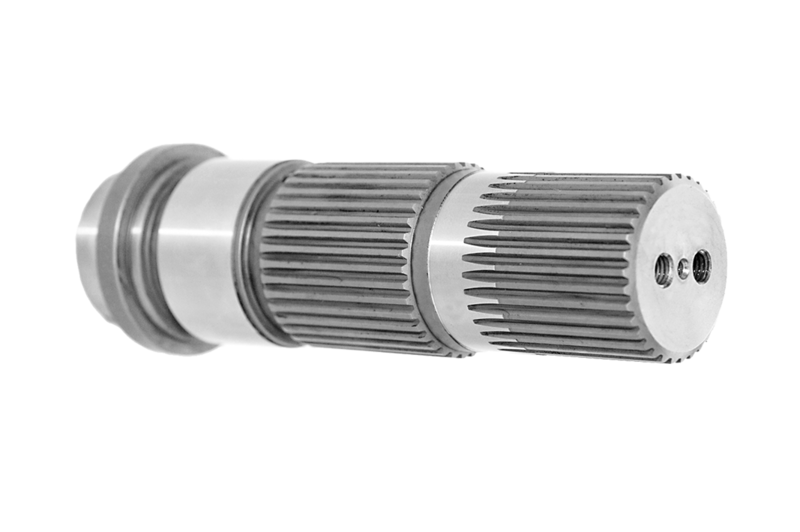

Toothed Parts & Drive Elements

RSGetriebe is your competent partner for contract machining of toothed components. Whether you need a single part or a small series, RSGetriebe will manufacture cubic or rotationally symmetric toothed parts and drive elements for you – flexibly, on time, reliably and to the highest quality standards.

Our comprehensive machine inventory, in which investments are always being made, and our qualified employees guarantee the best machining results. At RSGetriebe, you get everything from one source: turning, milling, gear cutting, grinding, gear grinding, balancing, aligning and assembly.

RSGetriebe's expertise at a glance:

• Turning: max. Ø 650 mm, max. length 1,500 mm
• Milling: max. X = 2,000 mm, Y = 1,600 mm, Z = 1,500 mm
• Gear cutting and broaching: max. Ø 600 mm, max. length 95 mm, module 0.5 to 7 and max. Ø 450 mm, max. length 250 mm, module 0.8 to 8
• Grinding (external and internal): max. Ø 600 mm, max. length 1,500 mm, centre height: 300 mm
• Tooth flank grinding: max. Ø 800 mm, max. length 1,055 mm, module 0.8 to 15
• Spline shaft grinding: max. Ø 90 mm, max. length 700 mm
• Surface grinding: X = 375 mm grinding width, Y = 800 mm grinding length, Z = 375 mm grinding height, max. table load 350 kg
• Keywaying: width 70 mm
