Transfer Cases

Know-How for Your Application

Transfer cases distribute the input torque to multiple outputs. They are used in many different industries. Based on the direction of rotation, the number of output shafts and the shaft arrangement, RSGetriebe can develop the perfect drive concept for you – individually and economically.

Transfer cases are used particularly often in straightening machinery and in the metal-forming industry. RSGetriebe can draw on extensive know-how when it comes to torques and straightening process loads and customises the transfer case design to meet your specific requirements. The up to 21 shafts are designed for steady and quiet running of the straightening rolls.

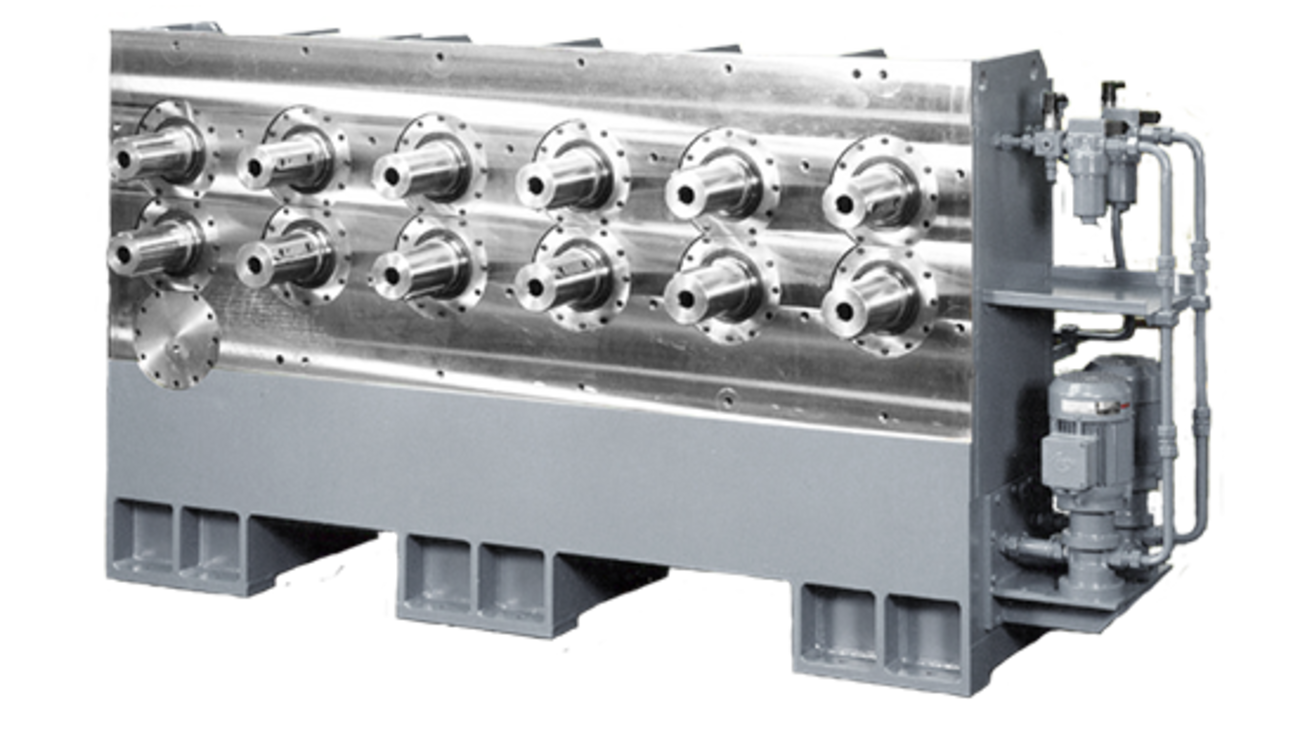

Transfer case for a mixing plant

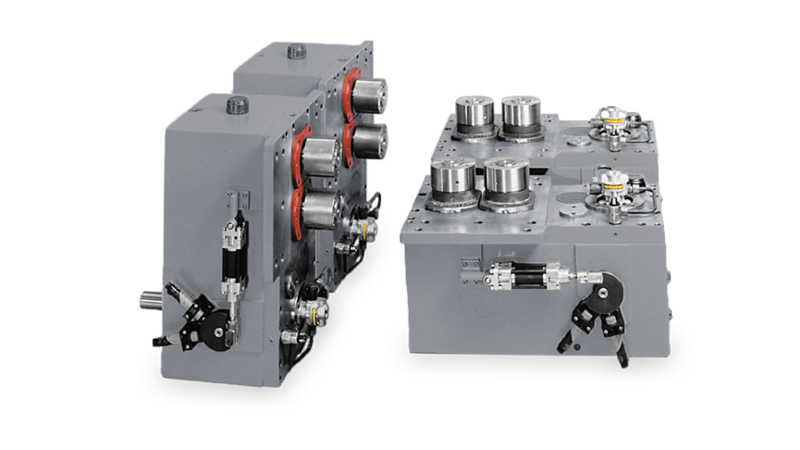

Shiftable transfer case for a steel rolling mill

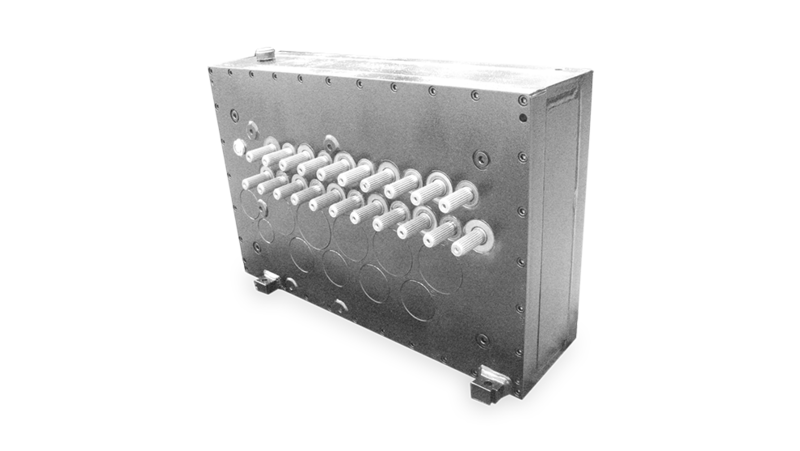

Transfer case for heavy-duty sheet straightening plants

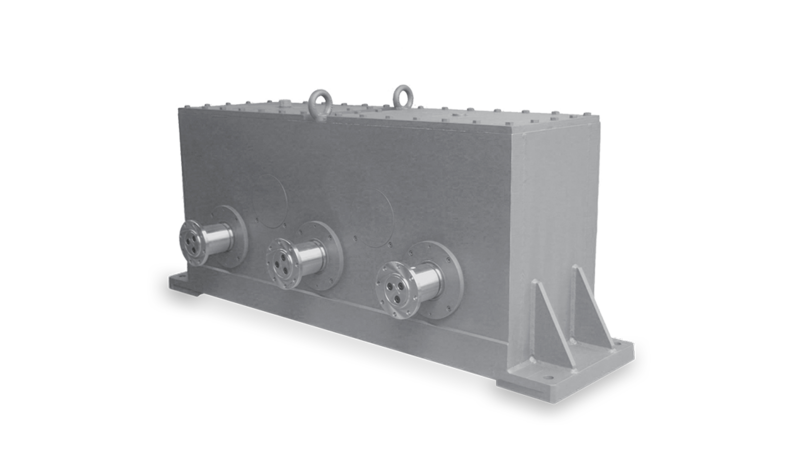

2-speed transfer case for a steel rolling mill

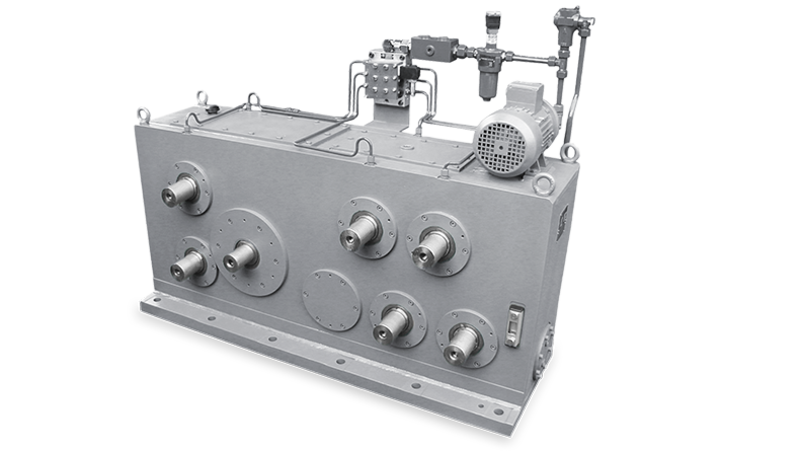

Transfer case for straightening machines

Technical Data

The transfer cases from RSGetriebe are available with the following performance data:

Power	P	kW	5 to 1,200
Ratio	i		Depends on the customer’s requirements and technical feasibility
Speed	n_{2 max}	rpm	Up to 4,000
Torque	T_{2 max}	Nm	25,000

Housing	Steel, cast iron
Lubrication	Oil splash lubrication, oil circulation lubrication with pump or separate oil supply unit.
Cooling	Oil/water cooler, internal and external, oil/air cooler

The inputs and outputs are implemented in accordance with the customer's specifications.

Industry Solutions

For Complex and Customized Requirements

RSGetriebe has been an established partner to a wide range of industries for many decades. Every field of industry has its own requirements and legitimacies – even in the drive technology area. The RSGetriebe team therefore uses its decades-long know-how to develop individual solutions for every industry and thus supports the success of your products.
